Innolux LCD Panel , 10.1inch EJ101IA-01G Hard coating High Brightness LCD Panel
The Feathers Of LCD industrial Screen Display as Bellow:
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 183g (Typ.) |
| Surface : | Hard coating |
| Active Area : | 216.96×135.6 mm (H×V) |
| Outline Dimension : | 229.46×149.1 mm (H×V) |
| Outline Depth : | 2.5/4.31 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.33 (Typ./Max.)(13 points) |
Applications for Innolux LCD Panel :
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Why Choose N&S?
1) Enough industrail experience and involved main markets all over the world.
2) Dedicated and professional sales team will offer you 24 hours online and immediate service.
3) Precise and advanced equipments.
4) High quality and sensitivity.
5) Many kinds of products with all size.
What can we do for you:
Our LCD Panel inventory lines mostly covered small size from
1.5",2.0",2.2",2.5",3.0",3.5",4.0",4.2",4.3",4.7",5.0",5.5",5.7",6.0",6.4",7.0",8.0",10.1",10.4",12.1" etc.
What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Payment methods?
T/T and Western union etc. The details of our payment terms is showing above.
How long is the warranty period?
Usually 1 Year without damaged by people actions. It depends on different products.
What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

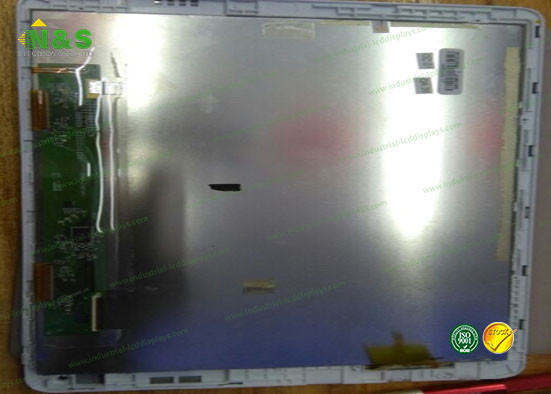

Details Pictures for the EJ101IA-01G Screen Display Panel:

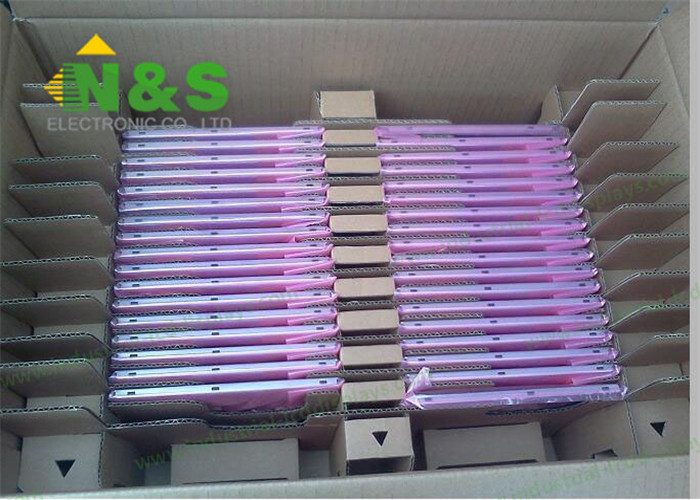

Details Pictures About The Package:
