8 Inch FPC 60 Pins 800*480 Automotive Display G080Y1-T01 Without Driver

Name: 8 Inch FPC 60 Pins 800480 Automotive Display G080Y1T01 Without Driver
Brand: Innolux
Price: 1 USD

China 8 Inch FPC 60 Pins 800*480 Automotive Display G080Y1-T01 Without Driver wholesale

Brand Name : Innolux

Model Number : G080Y1-T01

Certification : ISO9001

MOQ : 1pcs

Payment Terms : T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal

Supply Ability : 1000pcs

Delivery Time : 1-2days

Size : 8 Inch

Resolution : 800×480

Brightness : 600

C/R : 600:1

View Angle : 70/70/60/60

Colors : 262K/16.2M

Backlight : WLED

Operating Temp. : -30 ~ 85 °C

Storage Temp. : -40 ~ 90 °C

Vibration Level : 3.0G (29.4 m/s²)

Contact Now

1.Innolux G080Y1-T01 Optical Features:

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	600 (Typ.)	70/70/60/60 (Typ.)(CR≥10)	5/11 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	-	TN, Normally White, Transmissive	600 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	262K/16.2M (6-bit / 6-bit + FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	71%	92%	71%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	74%	53%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25/1.40 (Typ./Max.)(5 points)

2.Innolux G080Y1-T01 Mechanical Features:

Panel Size :	8.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	800(RGB)×480 [WVGA]	RGB Vertical Stripe	0.21675×0.21675	0.07225×0.21675
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	173.4(H) × 104.04(V)	175.2(H) × 105.84(V)	190(H) × 120(V)	5.06±0.3 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	15:9 (H:V)	-
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	172g (Typ.)	-	Antiglare, Hard coating (3H)

3.Innolux G080Y1-T01 Backlight Features:

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Bottom side)	9S3P	Array	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	28.8/31.5V (Typ./Max.)		120/130mA (Typ./Max.)			3.45W (Typ.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	YEONHO	35001HS-02L	3.5 mm	2 pins	1 pcs	BLE-2PINS-AC

4.FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?
A:Yes,sample order is welcome.

Q5:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
8 Inch FPC 60 Pins 800*480 Automotive Display G080Y1-T01 Without Driver

Product Tags:

Fiber Optic Photoelectric Sensor

Laser Proximity Sensor

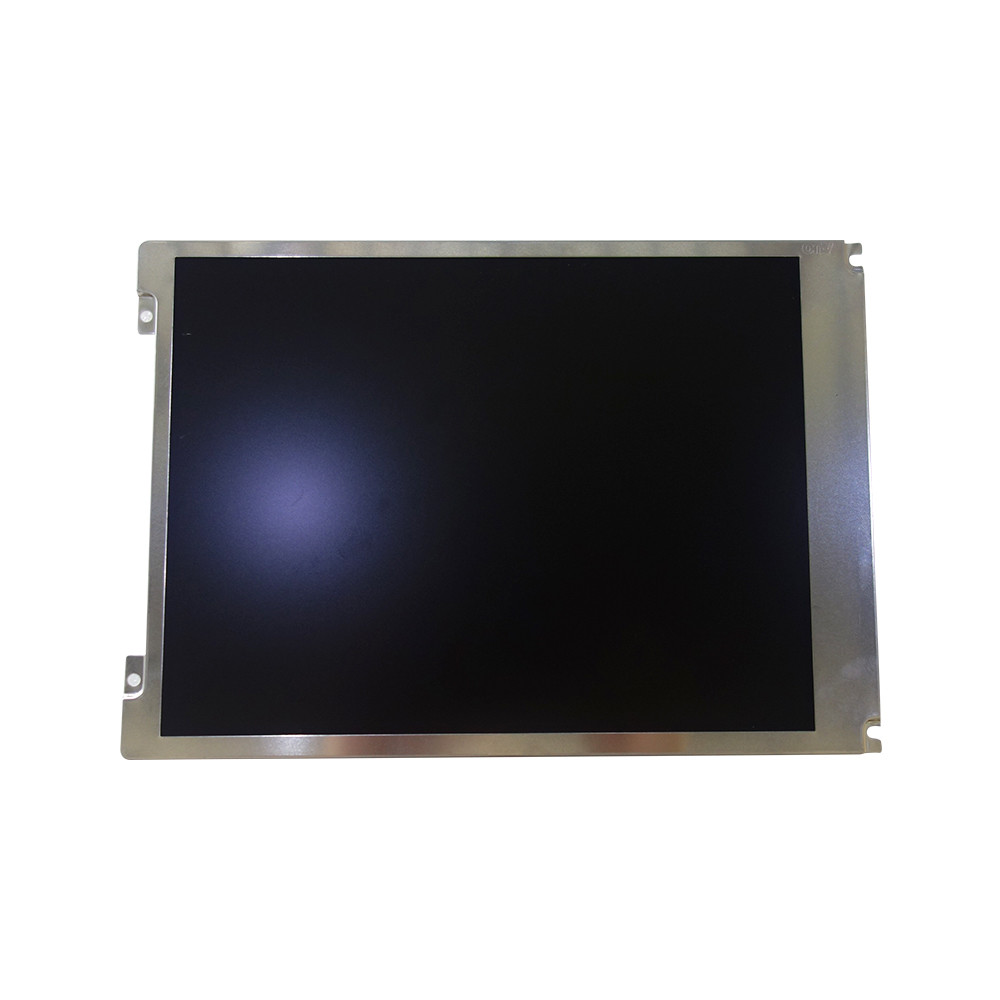

8 Inch FPC 60 Pins 800*480 Automotive Display G080Y1-T01 Without Driver Images
