CPT CLAA070WP03XG 7 inch tft lcd display , industrial display solutions
CPT CLAA070WP03XG General Features
| Panel Brand : | CPT |
| Panel Model : | CLAA070WP03XG |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×1280 , WXGA |
| Display Mode : | HFFS, Normally Black, Transmissive |
| Active Area : | 94.2×150.72 mm |
| Outline : | 104.32×161.67×4.05 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 60% |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
CPT CLAA070WP03XG Optical Features
| Display Mode : | HFFS, Normally Black, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.39 (Typ./Max.)(9 points) |
Company Strength
1. ISO9001 certificated, Factory Direct Supplied
2. RoHS Compliant, Lead Free, Reach Compliant
3. Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time

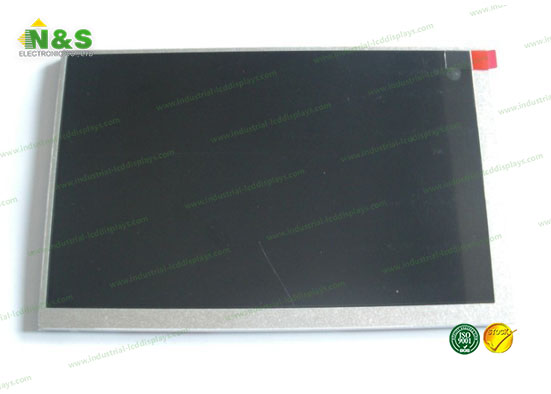

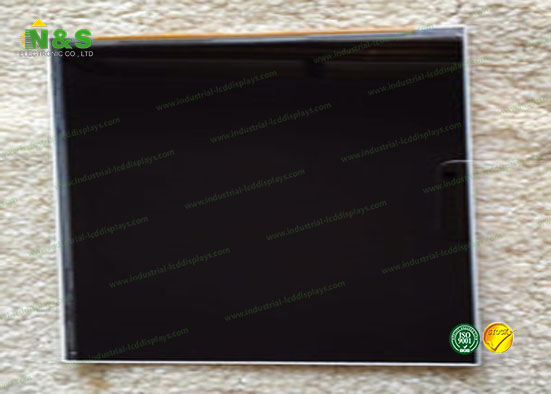

Details Pictures for CPT CLAA070WP03XG
