5.6 inch Normally White LTD056ET0S with 141.8*84.4 mm for MID UMPC panel
Toshiba Matsushita LTD056ET0S General Features
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LTD056ET0S |
| Panel Type : | LTPS TFT-LCD , Panel |
| Panel Size : | 5.6 inch |
| Resolution : | 1024(RGB)×600 , WSVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 122.88×72 mm |
| Outline : | 141.8×84.4 mm |
| Brightness : | 165 cd/m² (Typ.) |
| Contrast Ratio : | 200:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 50 (Max.)(Tr+Td) |
| Viewing Angle : | 40/40/25/30 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6-bit) , 25 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
Toshiba Matsushita LTD056ET0S Mechanical Features
| Panel Size : | 5.6 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 211 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.040×0.120 mm (H×V) |
| Pixel Pitch : | 0.120×0.120 mm (H×V) |
| Weight : | 75g (Typ.) |
| Active Area : | 122.88×72 mm (H×V) |
| Bezel Area : | 127.9×77.0 mm (H×V) |
| Outline Dimension : | 141.8×84.4 mm (H×V) |
| Outline Depth : | 7.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

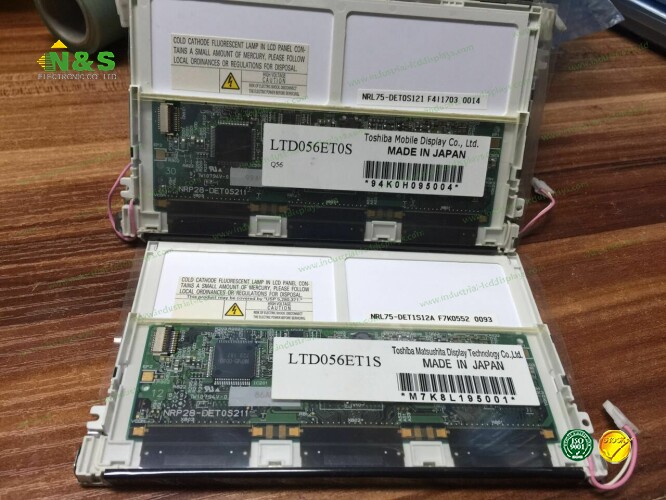

Details Pictures for Normally White LTD056ET0S
