Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline

Name: Innolux LCD Panel N101BCGGK1 101 inch 2225212511 mm Active Area 234931391743 mm Outline
Brand: Innolux LCD Panel
Price: 1 USD

China Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline wholesale

Brand Name : Innolux LCD Panel

Model Number : N101BCG-GK1

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 10.1 inch

Resolution : 1366(RGB)×768 , WXGA

Display Mode : IPS, Normally Black, Transmissive

Brightness : 400 cd/m² (Typ.)

Contrast Ratio : 800:1 (Typ.)

Display Colors : 16.7M (8-bit) , CIE1931 50%

Response Time : 14/11 (Typ.)(Tr/Td)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)

Contact Now

Innolux LCD Panel N101BCG-GK1 10.1 inch 222.52×125.11 mm Active Area 234.93×139.17×4.3 mm Outline

Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options.
• All steel construction provides rugged frame for public use environments
• Two independent touch points
• Improved power efficiency and reduced consumption
• ISO9001 approvals.

The reasons you choose us
1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.
INNOLUX N101BCG-GK1 General Features

Panel Brand :	INNOLUX
Panel Model :	N101BCG-GK1
Panel Type :	a-Si TFT-LCD , Panel
Panel Size :	10.1 inch
Resolution :	1366(RGB)×768 , WXGA
Display Mode :	IPS, Normally Black, Transmissive
Active Area :	222.52×125.11 mm
Outline :	234.93×139.17×4.3 mm
Surface :	Glare (Haze 0%), Hard coating (3H)
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	800:1 (Typ.)
Display Colors :	16.7M (8-bit) , CIE1931 50%
Response Time :	14/11 (Typ.)(Tr/Td)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	6S6P WLED
Signal Interface :	MIPI (4 data lanes) , 39 pins
Input Voltage :	3.3/1.2V (Typ.)(VDD/Core_VDD)

INNOLUX N101BCG-GK1 Optical Features

Display Mode :	IPS, Normally Black, Transmissive
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	800 : 1 (Typ.) (Transmissive)
Display Color :	16.7M (8-bit)
Color Gamut :	50% NTSC (CIE1931)
Response Time :	14/11 (Typ.)(Tr/Td)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
White color Chromaticity :	Wx:0.313; Wy:0.329
White Variation :	1.18/1.25 (Typ./Max.)(5 points)

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
AE060RN01	Innolux	6.0"	800×600
F050A12-601	Innolux	5.0"	480×854
85C02502-Y21	Innolux	2.5"	320×240
V260B2-P03 Rev.C2	Innolux	26.0"	1366×768
G070YG1-P01	Innolux	7.0"	800×480
F03215-01Z	Innolux	3.2"	360×480
F0352A-01U	Innolux	3.5"	320×480
F07020-01D	Innolux	7.0"	480×234
HB101NA-01C	Innolux	10.1"	1280×800

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

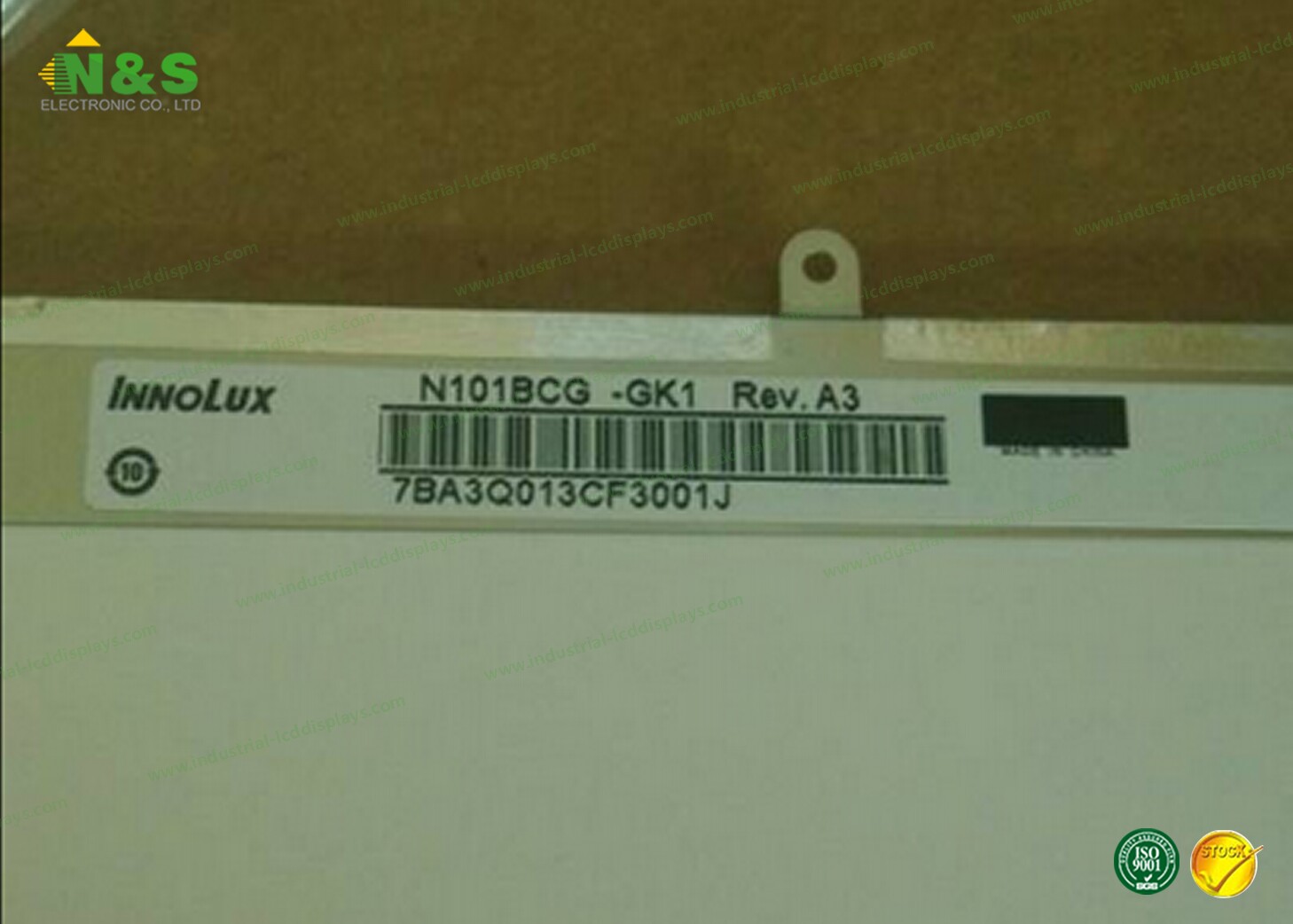

Details Pictures for Innolux LCD Panel N101BCG-GK1
