Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline

Name: Innolux LCD Panel ZJ050NA08C 50 inch 101577618 mm Active Area 11765884359 mm Outline
Brand: Innolux LCD Panel
Price: 1 USD

China Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline wholesale

Brand Name : Innolux LCD Panel

Model Number : ZJ050NA-08C

Certification : ISO9001

Place of Origin : Japan,Korea

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , Panel

Panel Size : 5.0 inch

Resolution : 640(RGB)×480 , VGA

Outline : 117.65×88.43×5.9 mm

Surface : Antiglare

Brightness : 250 cd/m² (Typ.)

Frequency : 60Hz

Lamp Type : WLED

Contact Now

Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline

INNOLUX ZJ050NA-08C General Features

Panel Brand :	INNOLUX
Panel Model :	ZJ050NA-08C
Panel Type :	a-Si TFT-LCD , Panel
Panel Size :	5.0 inch
Resolution :	640(RGB)×480 , VGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	101.57×76.18 mm
Outline :	117.65×88.43×5.9 mm
Surface :	Antiglare
Brightness :	250 cd/m² (Typ.)
Contrast Ratio :	500:1 (Typ.)
Display Colors :	16.7M (8-bit) , CIE1931 50%
Response Time :	10/15 (Typ.)(Tr/Td)
Viewing Angle :	70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	WLED
Signal Interface :	Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage :	3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)

INNOLUX ZJ050NA-08C Mechanical Features

Panel Size :	5.0 inch
Dot Resolution :	640(RGB)×480 (VGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	160 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.053×0.159 mm (H×V)
Pixel Pitch :	0.159×0.159 mm (H×V)
Weight :	TBD
Surface :	Antiglare
Active Area :	101.57×76.18 mm (H×V)
Outline Dimension :	117.65×88.43 mm (H×V)
Outline Depth :	5.7±0.2 mm
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model	Brand	Size	Resolution
V850DK1-QS1 Rev.C8	Innolux	85"	3840×2160
V850DK1-QS1 Rev.C2	Innolux	85"	3840×2160
V650DJ4-QS5 Rev.M1	Innolux	65"	3840×2160
N080ICP-G01 CELL	Innolux	8.0"	800×1280
DE080NA-01D	Innolux	8.0"	800×480
AT080YN01	Innolux	8.0"	1024×600
PG055IA-03H	Innolux	5.5"	720×1280
PP057IC-01A	Innolux	5.7"	1080×1920

Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

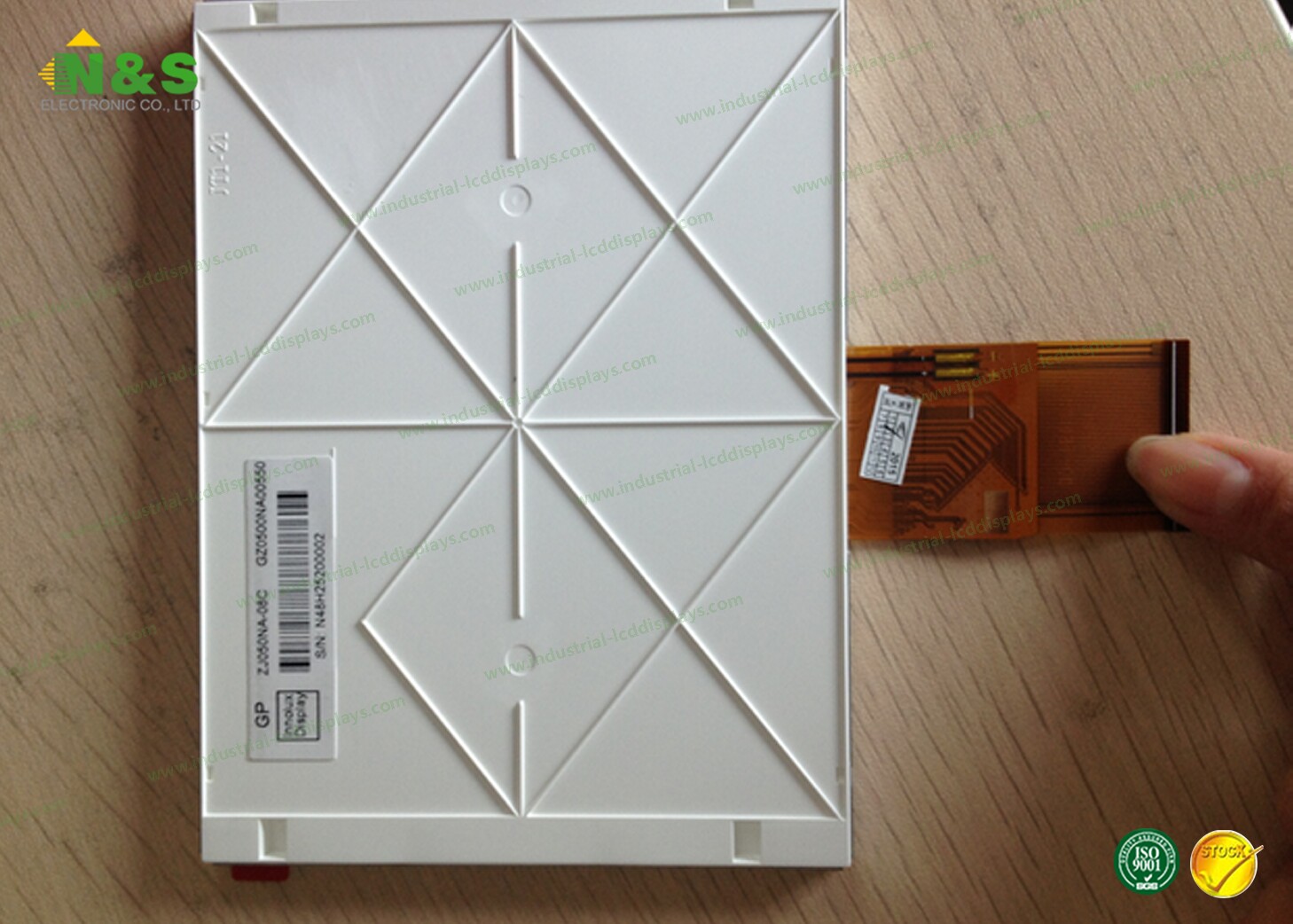

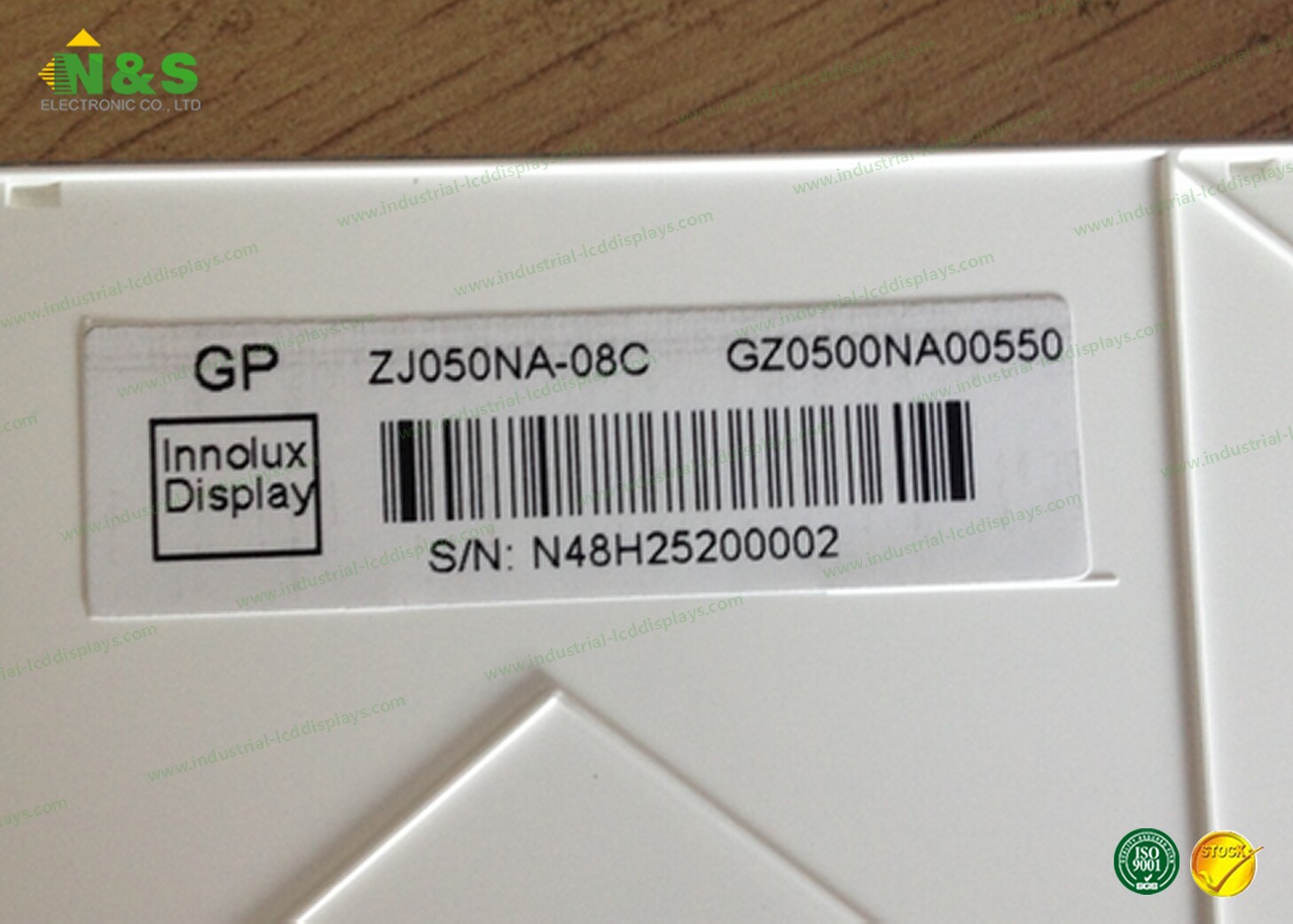

Details Pictures for Innolux LCD Panel ZJ050NA-08C
