G154IJE - L02 Innolux lcd display repair with 1280*800 WXGA Resolution
Our Scope Of Services
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products.
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us,you can enjoy the real panels directly from original factory.
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3.Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4.long-term partner:
* Products are sold to more than 20 countries.
5.Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Initial Electrical Optical Characteristics
| Display mode | IPS, Normally Black, Transmissive |
| Luminance | 400 nits |
| Contrast Ratio | 1000:1 |
| Color | 262K/16.7M |
| Response | 15/10 (Tr/Td) ms |
| Viewing Angle | 88/88/88/88(U/D/L/R) |
| The Best View | Symmetry |
| White Field Chroma | X:0.313; Y:0.329 |
| White Field Dynamic | 1.25 (5 points) |
| Scanning Frequency | 60Hz |
| The kind of Singnal | LVDS |
| Interface | LVDS |
| Singnal Interface Definition | LVDS-30P1C8B-105A |
| Drive-screen voltage | 3.3V |
| Input Current | 750mA |
| Kind of Singnal Interface | Included in the screen signal interface |
| Brand of Singnal Interface | STARCONN |
| Model of Singnal Interface | 093G30-B1001A-G4 |
| Pitch of Singnal Interface | 1 mm |
| Pin of Singnal Interface | 30 pins |
G154IJE-L02 Structural Parameter
| Operation Temperature | -10 °C ~ 70 °C |
| Storage Temperature | -20°C ~ 80°C |
| Active Area | 331.2×207 mm |
| Display Area | 334.5×210.3 |
| Outline | 352.00× 230.00×8.70 mm |
| Touch Panel | Without |
| Lamp Position | Edge light type |
| Backlight | WLED |
| Life Time of Lamp | 50K Hours |
| Driver of Backlight | Embedded (LED Driver) |
| Kind of Backlight Interface | Included in the screen signal interface |
| Brand of Backlight Interface | STARCONN |
| Model of Backlight Interface | 093G30-B1001A-G4 |
| Quantity of Backlight Interface | 1 pcs |
| Pitch of Backlight Interface | 1.0 mm mm |
| Backlight Interface Define | LVDS-30P1C8B-105A |

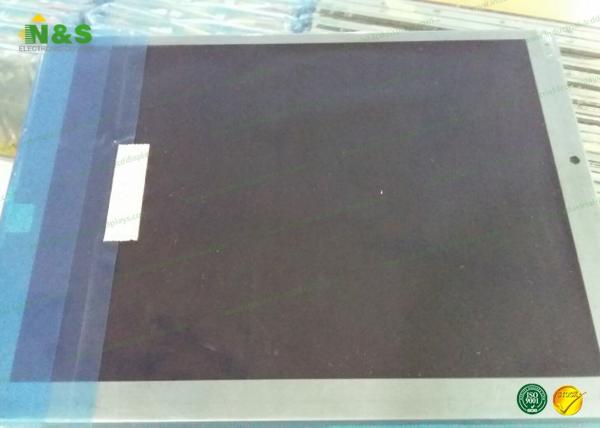

Product Photograph for G154IJE-L02

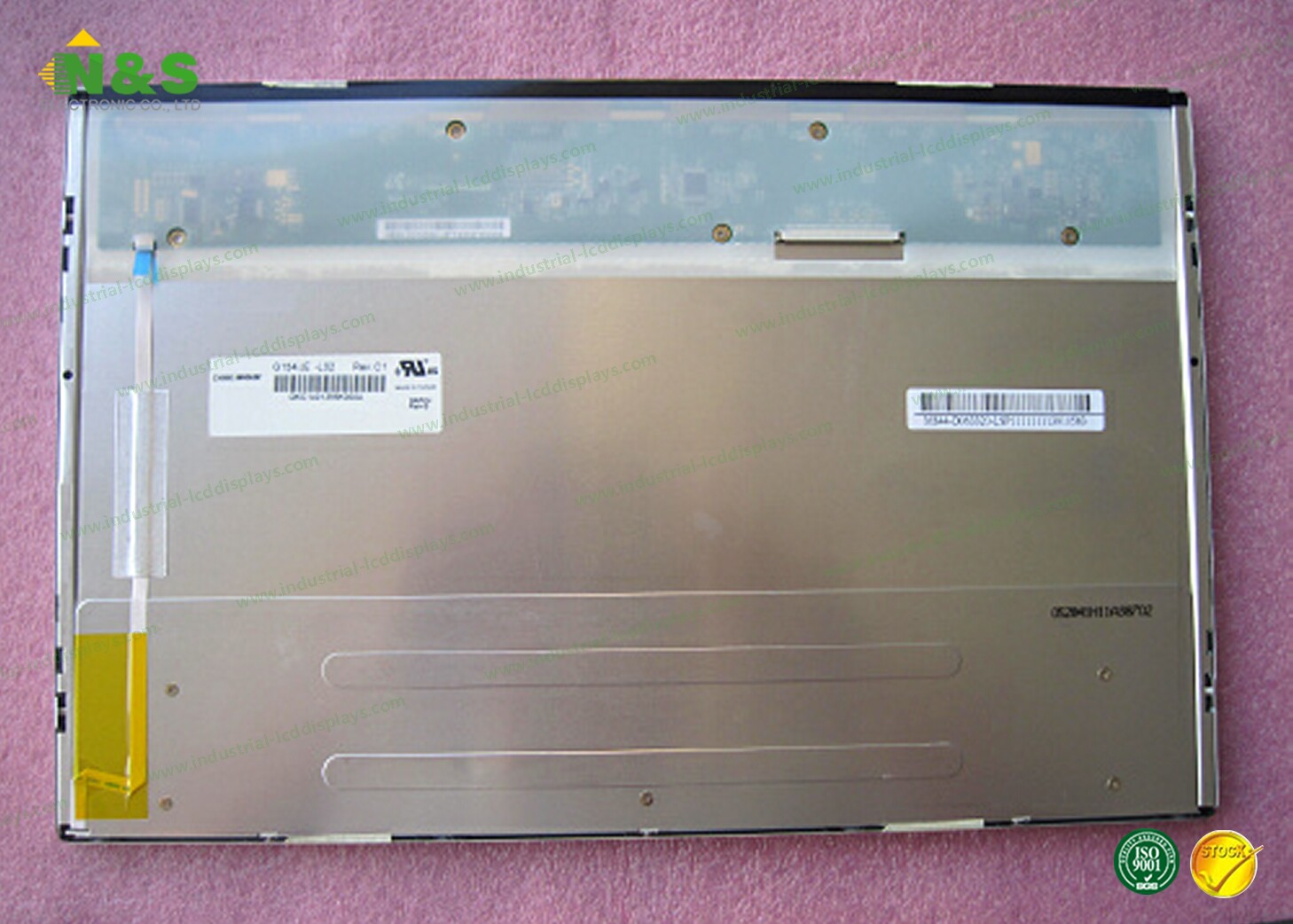

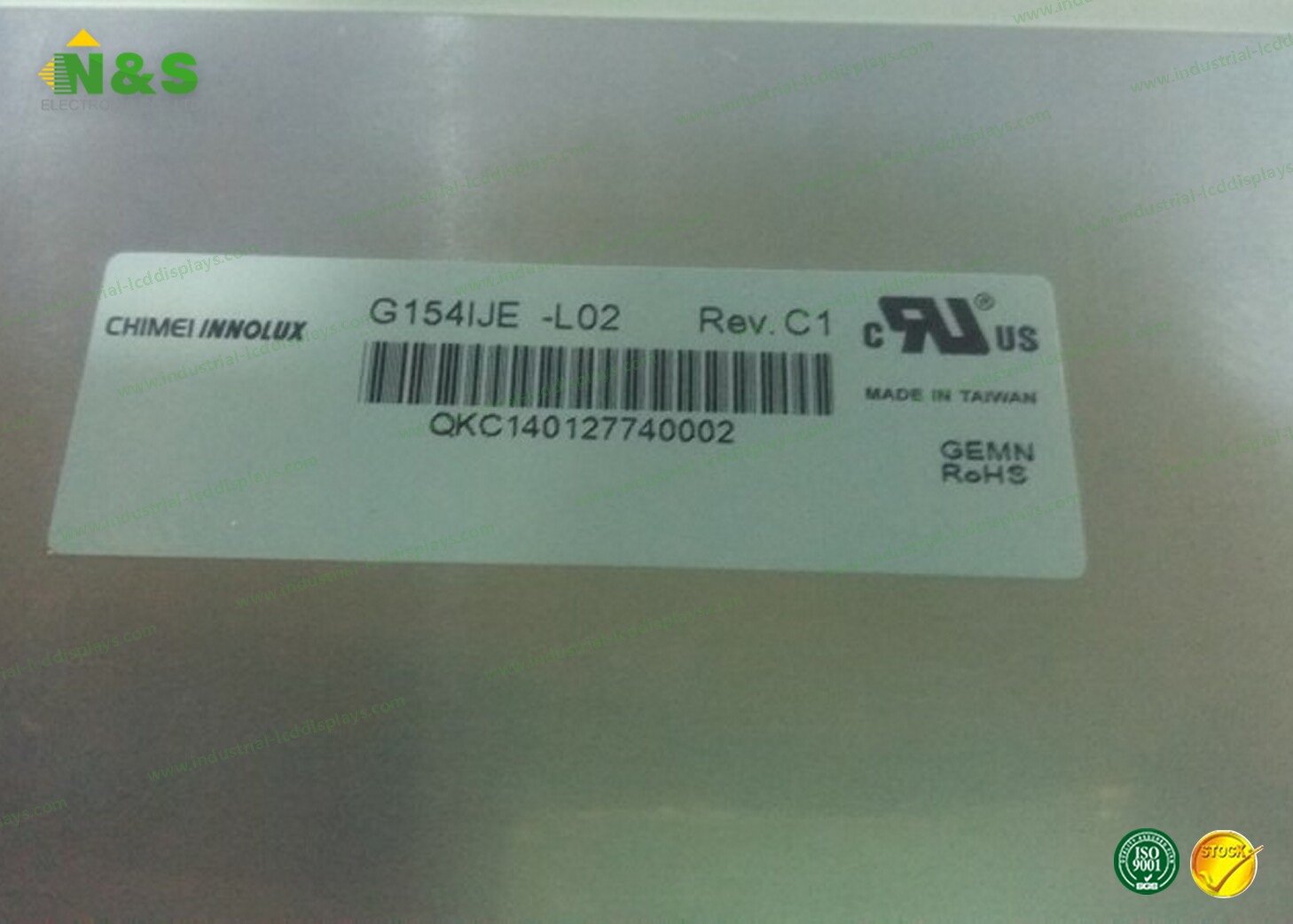

Backside Photograph
Tabs Photograph
Packaging Photograph
