AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application

Name: AA057QB03 Mitsubishi LCD Panel 57 inch for Industrial Application
Brand: Mitsubishi
Price: 1 USD

China AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application wholesale

Brand Name : Mitsubishi

Model Number : AA057QB03

Certification : ISO9001

Place of Origin : korea

MOQ : 1

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 Working Days after order confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : Mitsubishi

Panel Model : AA057QB03

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 5.7 inch

Resolution : 320(RGB)×240 , QVGA

Display Mode : TN, Normally White, Transmissive

Contact Now

AA057QB03 Mitsubishi LCD Panel 5.7 inch for Industrial Application

Specification of AA057QB03 Mitsubishi LCD

Panel Brand :	Mitsubishi
Panel Model :	AA057QB03
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	5.7 inch
Resolution :	320(RGB)×240 , QVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	115.2×86.4 mm
Outline :	144×104.8×13.5 mm
Surface :	Clear, Hard coating (3H)
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	450:1 (Typ.)
Display Colors :	262K (6-bit)
Response Time :	10/25 (Typ.)(Tr/Td)
Viewing Angle :	60/60/60/40 (Typ.)(CR≥10) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	1 pcs CCFL Without Driver
Signal Interface :	CMOS (1 ch, 6-bit) , 33 pins
Input Voltage :	3.3V (Typ.)

Quality Control:

Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

Function Inspection

Make sure all functions are 100% tested ok

Panel Size :	5.7 inch
Dot Resolution :	320(RGB)×240 (QVGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	70 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.120×0.360 mm (H×V)
Pixel Pitch :	0.360×0.360 mm (H×V)
Weight :	220g (Typ.)
Surface :	Clear, Hard coating (3H)
Active Area :	115.2×86.4 mm (H×V)
Bezel Area :	119.8×91.0 mm (H×V)
Outline Dimension :	144×104.8 mm (H×V)
Outline Depth :	13.0±0.5 mm
Holes & Brackets :	Rear mounting holes (4-Ф2.6)
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
AA150XN21	Mitsubishi	15.0"	1024×768
AA121TD03	Mitsubishi	12.1"	1280×800
AA150XT11-DE-01	Mitsubishi	15.0"	1024×768
AA121XN11-DE-01	Mitsubishi	12.1"	1024×768
AA104XF12-DE-02	Mitsubishi	10.4"	1024×768
AA084XE11-DA-02	Mitsubishi	8.4"	1024×768
AA084XE11-DA-01	Mitsubishi	8.4"	1024×768

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

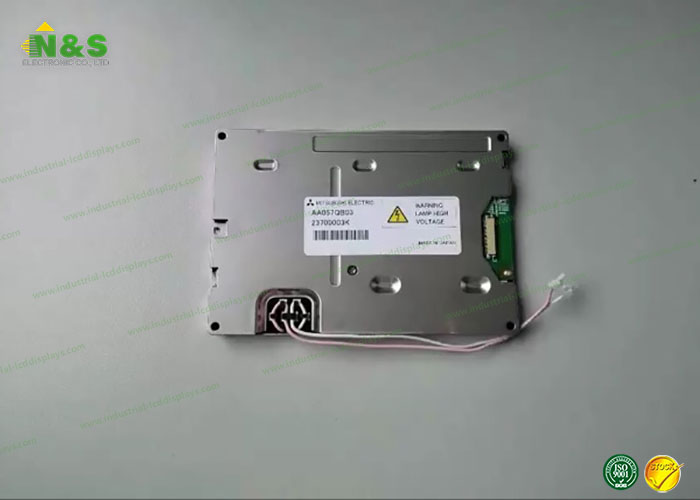

AA057QB03 Mitsubishi LCD picture
