HSD070PWW1-B01 HannStar LCD Panel 7.0 inch with 150.72×94.2 mm Active Area

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

HSD070PWW1-B01 HannStar LCD Panel 7.0 inch with 150.72×94.2 mm Active Area

Brand Name : HannStar

Model Number : HSD070PWW1-B01

Certification : ISO9001

Place of Origin : korea

MOQ : 1

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 Working Days after order confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : HannStar

Panel Model : HSD070PWW1-B01

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 7.0 inch

Resolution : 1280(RGB)×800 , WXGA

Display Mode : HS-IPS, Normally Black, Transmissive

Contact Now


HSD070PWW1-B01 HannStar LCD Panel 7.0 inch with 150.72×94.2 mm Active Area

Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

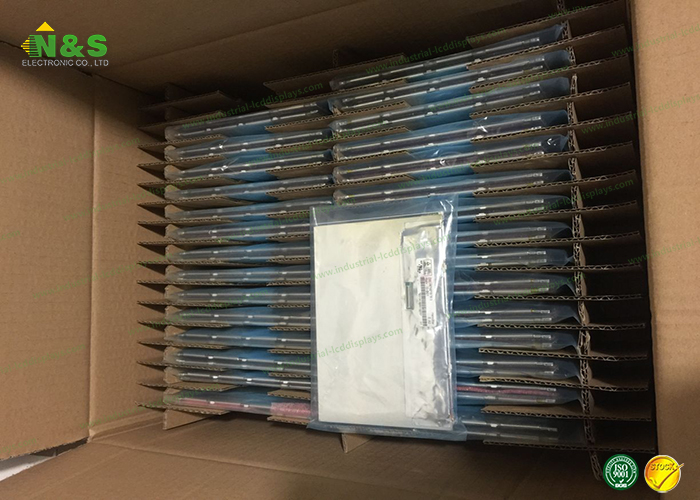

Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

HSD070PWW1-B01 Detail

Panel Brand :HannStar
Panel Model :HSD070PWW1-B01
Panel Type :a-Si TFT-LCD , LCM
Panel Size :7.0 inch
Resolution :1280(RGB)×800 , WXGA
Display Mode :HS-IPS, Normally Black, Transmissive
Active Area :150.72×94.2 mm
Outline :161.2×105.5×4.5 mm
Surface :Hard coating
Brightness :400 cd/m² (Typ.)
Contrast Ratio :800:1 (Typ.)
Display Colors :262K (6-bit) , CIE1931 50%
Response Time :25 (Typ.)(Tr+Td)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :WLED Embedded (LED Driver)
Signal Interface :LVDS (1 ch, 6-bit) , 30 pins
Input Voltage :3.3V (Typ.)


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
HSD043B8W2-C01HannStar4.3"480×800
HSD070IDW3-A00-0299HannStar7.0"800×480
HSD050F9W1-A00HannStar5.0"480×272
HSD050FDW1-A00HannStar5.0"800×480
HSD043F9W1-A00HannStar4.3"480×272

Panel Size :7.0 inch
Dot Resolution :1280(RGB)×800 (WXGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :215 PPI
Aspect Ratio :16:10 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.03925×0.11775 mm (H×V)
Pixel Pitch :0.11775×0.11775 mm (H×V)
Weight :90/93g (Typ./Max.)
Surface :Hard coating
Active Area :150.72×94.2 mm (H×V)
Outline Dimension :161.2×105.5 mm (H×V)
Outline Depth :2.35/4.5 (Typ./Max.) mm
Holes & Brackets :Without
Landscape or Portrait :Landscape type
Touch Panel :Without


HSD070PWW1-B01 Picture

HSD070PWW1-B01 HannStar LCD Panel 7.0 inch with 150.72×94.2 mm Active Area
