LG. LCD LM201W01-B6K1 20.1 inch Normally Black for Desktop Monitor panel

Product Categories

AUO LCD Panel [706]
Chimei LCD Panel [57]
Hitachi LCD Panel [57]
Innolux LCD Panel [344]
KOE LCD Display [86]
Tianma LCD Displays [194]
LG LCD Panel [357]
NEC LCD Panel [421]
Samsung LCD Panel [205]
Sharp LCD Panel [896]
Optrex LCD Display [26]
TFT LCD Module [333]
Industrial LCD Displays [1077]
ARM Development Board [9]
Medical LCD Displays [123]
Automotive LCD Display [20]
CCFL Power Inverter [104]

N&S ELECTRONIC CO., LIMITED

Contact Now

LG. LCD LM201W01-B6K1 20.1 inch Normally Black for Desktop Monitor panel

Brand Name : LG

Model Number : LM201W01-B6K1

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 20.1 inch

Resolution : 1680(RGB)×1050 , WSXGA+

Display Mode : TN, Normally White, Transflective

Active Area : 433.44×270.9 mm

Outline : 459.4×296.4 mm

Contact Now

LG. LCD LM201W01-B6K1 20.1 inch Normally Black for Desktop Monitor panel

LM201W01-B6K1 Information

Panel Size :	20.1 inch
Dot Resolution :	1680(RGB)×1050 (WSXGA+)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	98 PPI
Aspect Ratio :	16:10 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.086×0.258 mm (H×V)
Pixel Pitch :	0.258×0.258 mm (H×V)
Weight :	2.95/3.10Kgs (Typ./Max.)
Surface :	Antiglare (Haze 25%), Hard coating (3H)
Active Area :	433.44×270.9 mm (H×V)
Bezel Area :	438.4×275.9 mm (H×V)
Outline Dimension :	459.4×296.4 mm (H×V)
Outline Depth :	23.7 (Typ.) mm
Holes & Brackets :	Side mounting holes (4-M3)
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

Display Mode :	S-IPS, Normally Black, Transmissive
Brightness :	300 cd/m² (Typ.)
Contrast Ratio :	600 : 1 (Typ.) (Transmissive)
Display Color :	16.7M (8-bit)
Color Gamut :	72% NTSC (CIE1931)
Response Time :	7/9 (Typ.)(Tr/Td); 12 (Typ.)(G to G)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
White color Chromaticity :	Wx:0.313; Wy:0.329
White Variation :	1.43 (Max.)(9 points)
Sunlight Readable :	N

Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model	Brand	Size	Resolution
LH500X01-SH01	LG Display	5.0"	768×1024
LH500WX1-SH03	LG Display	5.0"	720×1280
LH450WV4-SH02	LG Display	4.5"	480×800
LH430WV4-SH01	LG Display	4.3"	480×800
LH430WV1-SH05	LG Display	4.3"	480×800
LH430M02-SH01	LG Display	4.3"	540×960
LH350H05-SH03	LG Display	3.5"	320×480
LH320H04-SH01	LG Display	3.2"	320×480
LH300WQ5-SH02	LG Display	3.0"	240×400
LH176J03-SH03	LG Display	1.8"	220×176
LH300WQ2-SH16	LG Display	3.0"	240×400

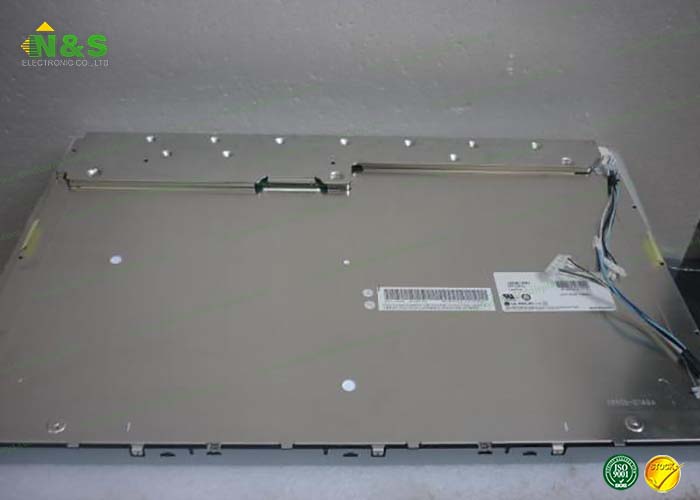

LM201W01-B6K1 Picture
