22.0 inch Antiglare LM220WE1-TLM1 LG LCD Pane LCM 1680×1050 300 1000:1 16.7M CCFL LVDS
LM220WE1-TLM1 Detail
| Panel Size : | 22.0 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.35/2.50Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 16.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LC320DXY-SJA1 | LG Display | 31.5" | 1366×768 |
| LC490EQY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490DUJ-SGE4 | LG Display | 49" | 1920×1080 |
| LC490EGY-SHM2 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHF1 | LG Display | 49" | 3840×2160 |
| LC490EGJ-SHA1 | LG Display | 49" | 3840×2160 |
| LC490EGY-SHA1 | LG Display | 49" | 3840×2160 |
| LM238WF2-SJF1 | LG Display | 23.8" | 1920×1080 |
| LC320DXY-SJA4 | LG Display | 31.5" | 1366×768 |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |

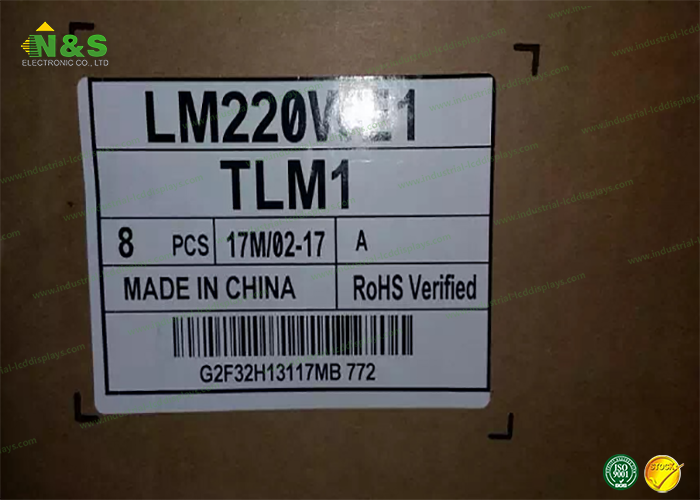

LM220WE1-TLM1 Picture
