High Quality VGA LCD Controller Board RT2270C A work for 10.4inch G104SN03 V5 800*600 lcd panel

Name: High Quality VGA LCD Controller Board RT2270C A work for 104inch G104SN03 V5 800600 lcd panel
Brand: auo LCD
Price: 1 USD

China High Quality VGA LCD Controller Board RT2270C A work for 10.4inch G104SN03 V5 800*600 lcd panel wholesale

Brand Name : auo LCD

Model Number : G104SN03 V5

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....

Supply Ability : 500PCS/DAY

Delivery Time : 1-2days

Packaging Details : Standard packing

Product number : G104SN03 V5

Brand : AUO

Size Of Panel : 10.4"

Resolution : 800×600

Brightness : 230 cd/m²

C/R : 500:1

Contact Now

High Quality VGA LCD Controller Board RT2270C A work for 10.4inch G104SN03 V5 800*600 lcd panel

AUO G104SN03 V5 Optical Features:

Panel Brand :	AUO
Panel Model :	G104SN03 V5
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	10.4 inch
Resolution :	800(RGB)×600 , SVGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	211.2×158.4 mm
Outline :	236×176.9×6 mm
Surface :	Antiglare, Hard coating (3H)
Brightness :	230 cd/m² (Typ.)
Contrast Ratio :	500:1 (Typ.)
Display Colors :	262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50%
Response Time :	10/5 (Typ.)(Tr/Td)
Viewing Angle :	80/80/60/70 (Typ.)(CR=10) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	3 strings WLED Embedded (LED Driver)
Signal Interface :	LVDS (1 ch, 6/8-bit) , 20 pins
Input Voltage :	3.3V (Typ.)

Our services:

We thought that every customer is our family member.
2. Best service with help is needed, if you have any problem, the first one you thought for help must be our team
3. Try our best to meet our customers’ requirements.
4. 24 hours online.
5. Check the item one by one before packing.
6. Delivery the product within our promise time.
7. Follow the order all the time, till you sell them successfully without any problem.
8. Solve all the problems after we got complaints from dear customers, no excuse! Because your problem, is ours.
9. Technical support. We have being already made these LCD Screen Panels for about 6 years in the international trade. Our product contained but not limited to Medical LCD display, Aerospace LCD screen, Gaming LCD Panels, Military LCD panels, Kiosk LCD display, Transportation LCD panels, Industrial LCD panels and more.

High Quality VGA LCD Controller Board RT2270C A work for 10.4inch G104SN03 V5 800*600 lcd panel

N&S will be your powerful partner on LCDs in China. Here we are to quote your need.

Product Tags:

auo lcd screen

auo lcd display

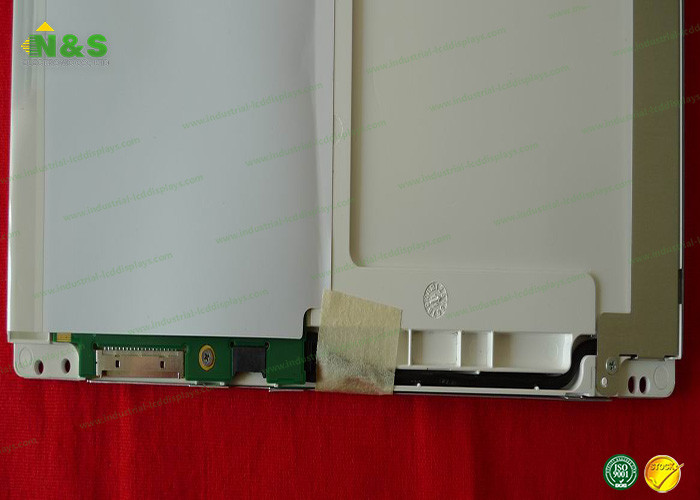

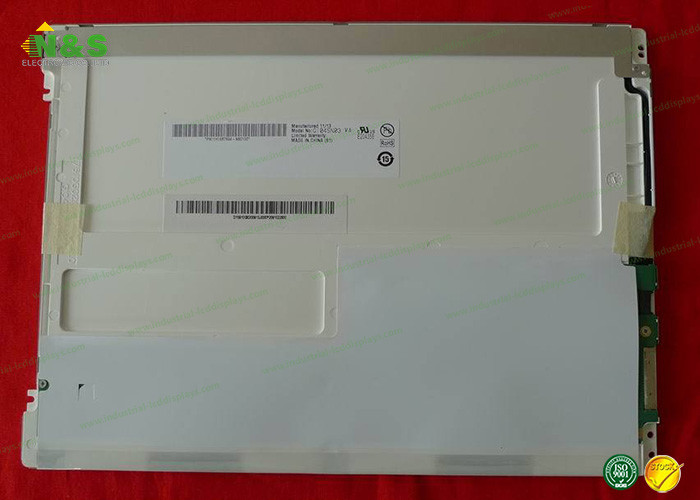

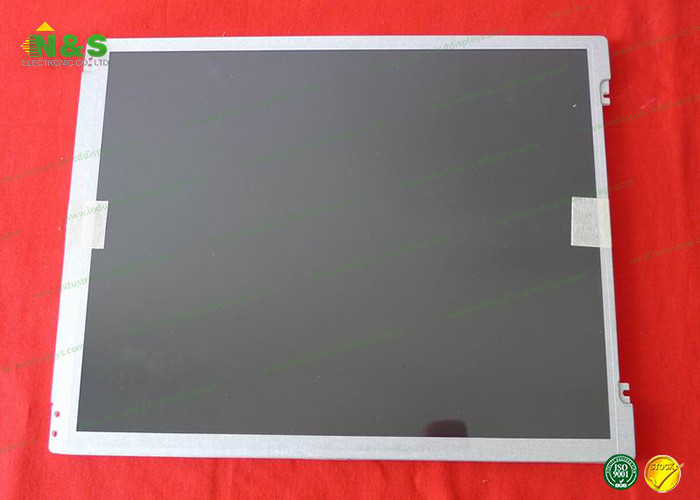

High Quality VGA LCD Controller Board RT2270C A work for 10.4inch G104SN03 V5 800*600 lcd panel Images
