EJ070IA-04A Innolux LCD Panel 7.0 inch Hard coating with 94.2×150.72 mm
Products Information:
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×1280 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 215 PPI |
| Aspect Ratio : | 10:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.03925×0.11775 mm (H×V) |
| Pixel Pitch : | 0.11775×0.11775 mm (H×V) |
| Weight : | |
| Surface : | Hard coating |
| Active Area : | 94.2×150.72 mm (H×V) |
| Outline Dimension : | 104.32×161.67 mm (H×V) |
| Outline Depth : | 2.3/3.8 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| | | IPS, Normally Black, Transmissive | |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
| F04801-01Z | Innolux | 4.8" | 540×960 |
| N133HSG-D31 | Innolux | 13.3" | 1920×1080 |
| N133HSE-D31 | Innolux | 13.3" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.

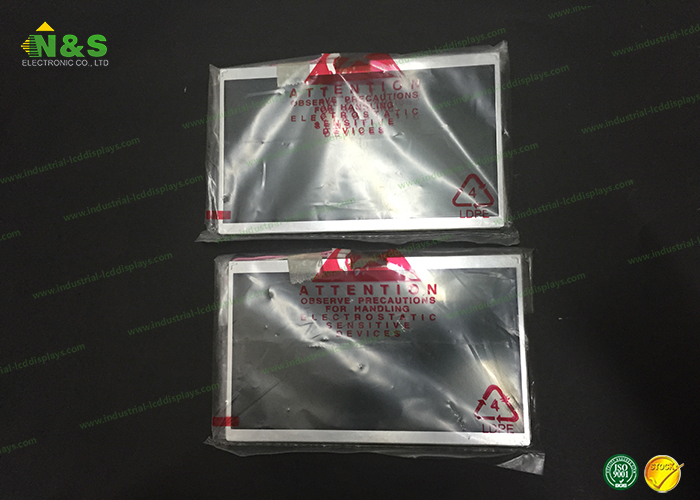

EJ070IA-04A Picture
