HT12X21-100 Industrial LCD Displays HYDIS 12.1 inch 1024×768 150 450:1 262K CCFL LVDS

Name: HT12X21100 Industrial LCD Displays HYDIS 121 inch 1024768 150 4501 262K CCFL LVDS
Brand: HYDIS
Price: 1 USD

Brand Name : HYDIS

Model Number : HT12X21-100

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1 Piece

Payment Terms : T/T, Paypal, Western Union, MoneyGram

Supply Ability : 100 PCS / DAY

Delivery Time : 2-3 working days after payment confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Size : 12.1 inch

Resolution : 1024(RGB)×768 , XGA

Display Mode : TN, Normally White, Transmissive

Signal Interface : LVDS (1 ch, 6-bit) , 20 pins

Contact Now

HT12X21-100 Industrial LCD Displays HYDIS 12.1 inch 1024×768 150 450:1 262K CCFL LVDS

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.

Products Information:

Panel Size :

12.1 inch

Dot Resolution :

1024(RGB)×768 (XGA)

Pixel Configuration :

RGB Vertical Stripe

Pixel Density :

105 PPI

Aspect Ratio :

4:3 (H:V)

Form Factor :

Flat Rectangle Display

Dot Pitch :

0.080×0.240 mm (H×V)

Pixel Pitch :

0.240×0.240 mm (H×V)

Weight :

290g (Typ.)

Surface :

Antiglare (Haze 25%), Hard coating (3H)

Active Area :

245.76×184.32 mm (H×V)

Bezel Area :

251.4×188.9 mm (H×V)

Outline Dimension :

270×199 mm (H×V)

Outline Depth :

6.5±0.3 mm

Holes & Brackets :

Face mounting holes (2-Φ2.0, 2-Φ2.2) on left, right slugs

Landscape or Portrait :

Landscape type

Touch Panel :

Without

Display Mode :

AFFS, Normally Black, Transmissive

Brightness :

150 cd/m² (Typ.)

Contrast Ratio :

450 : 1 (Typ.) (Transmissive)

Display Color :

262K (6-bit)

Color Gamut :

40% NTSC (CIE1931)

Response Time :

35 (Typ.)(Tr+Td)

Viewing Angle :

80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction :

Symmetry

White color Chromaticity :

Wx:0.305; Wy:0.330

White Variation :

1.40 (Max.)(5 points)

Sunlight Readable :

Below are our other LCD panels stock for your easy reference:

Panel Model	Brand	Size	Resolution
HX7308BTJFA	Himax	0.45"	1024×768
HX7027ATGFA	Himax	0.44"	640×480
HX7019ATGFA	Himax	0.38"	640×360

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

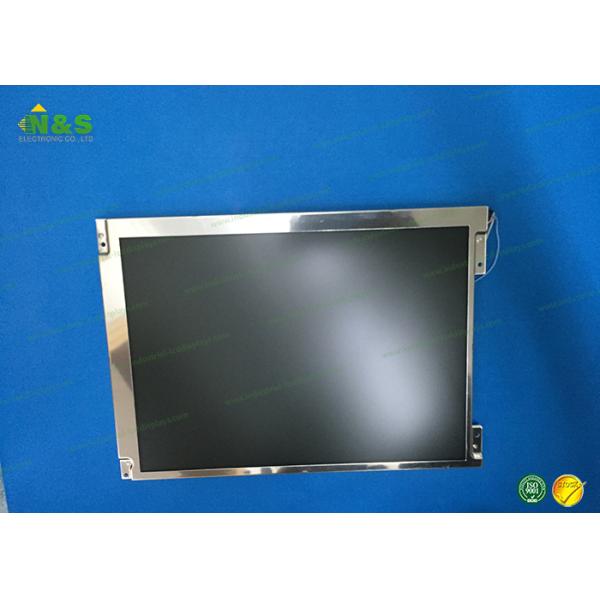

HT12X21-100 Picture
