Hard coating Innolux LCD Panel M260J3-L01 25.5 inch with 550.08×343.8 mm Active Area
M260J3-L01 Specification
| Panel Brand : | CMO |
| Panel Model : | M260J3-L01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 25.5 inch |
| Resolution : | 1920(RGB)×1200 , WUXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 550.08×343.8 mm |
| Outline : | 578.3×368.85 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 1/4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Size : | 25.5 inch |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 88 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0955×0.2865 mm (H×V) |
| Pixel Pitch : | 0.2865×0.2865 mm (H×V) |
| Weight : | 3.98/4.08Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 550.08×343.8 mm (H×V) |
| Bezel Area : | 554.1×347.8 mm (H×V) |
| Outline Dimension : | 578.3×368.85 mm (H×V) |
| Outline Depth : | 22.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

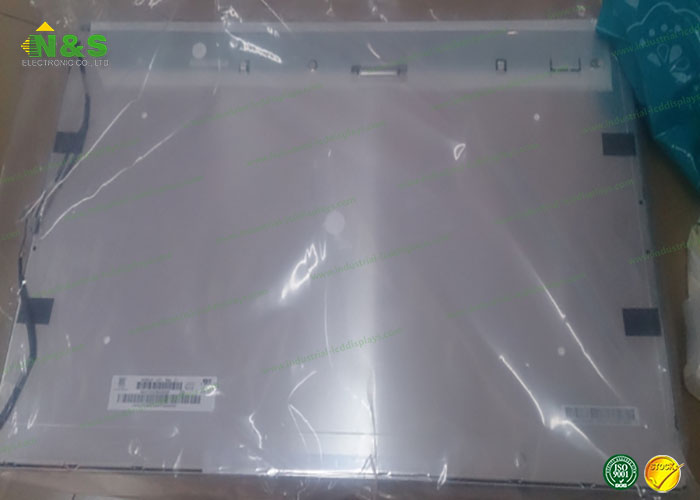

M260J3-L01 Innolux LCD Panel Picture
