LQ035Q5DG04 sharp lcd display panels LCM 240×320 262K WLED High brightness

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LQ035Q5DG04 sharp lcd display panels LCM 240×320 262K WLED High brightness

Brand Name : SHARP

Model Number : LQ035Q5DG04

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : Western Union, T/T, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 3.5 inch

Resolution : 240(RGB)×320 , QVGA

Display Mode : TN, Normally White, Transflective

Active Area : 53.64×71.52 mm

Outline : 65×86.2×4.2 mm

Contact Now

LQ035Q5DG04 SHARP Display PANEL 3.5 inch LCM 240×320 262K WLED

LQ035Q5DG04 Detail

Panel Size : 3.5 inch
Dot Resolution : 240(RGB)×320 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 113 PPI
Aspect Ratio : 3:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0745×0.2235 mm (H×V)
Pixel Pitch : 0.2235×0.2235 mm (H×V)
Active Area : 53.64×71.52 mm (H×V)
Landscape or Portrait : Portrait type

Display Mode : TN, Normally White, Transflective
Display Color : 262K (6-bit)
Sunlight Readable : Y

Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LM016LC1S07 SHARP 1.9" 96×128
LS050K3SX06A SHARP 5.0" 720×1280
LK460D3HA10 SHARP 46" 1920×1080
LK315T3HB874 SHARP 31.5" 1366×768
LK315T3HB873 SHARP 31.5" 1366×768
LQ0DZC0156 SHARP 40" 1920×1080
LX080M1BB01 SHARP 8.0" 1920×1200
LS050K3SX09 SHARP 5.0" 720×1280
LQ315D1EG02 SHARP 31.5" 3840×2160
JE0DZ1C0093 SHARP 60" 1920×1080
LK460D3FZ10 SHARP 46" 1920×1080
LQ0DZC0128 SHARP 31.5" 1366×768
LQ0DASA469 SHARP 4.7" 720×1280

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

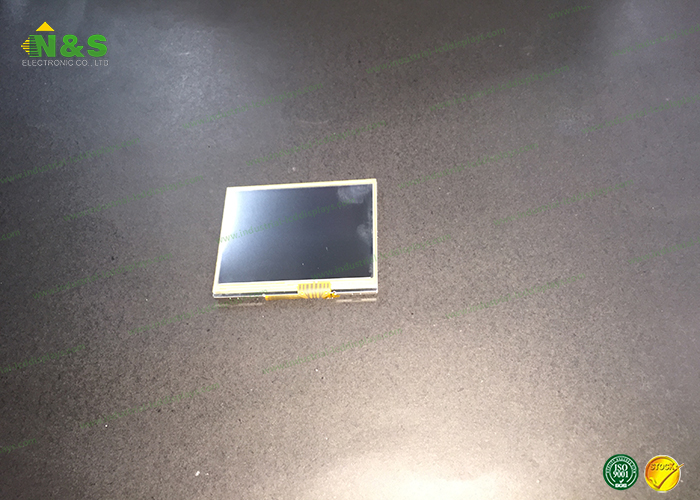

LQ035Q5DG04 Picture

LQ035Q5DG04 sharp lcd display panels LCM 240×320 262K WLED High brightness
