4.0 inch Transmissive PD040QX2 PVI LCD Displays for Industrial Application
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
PD040QX2 General Features
| Panel Brand : | PVI |
| Panel Model : | PD040QX2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.0 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 81.12×60.84 mm |
| Outline : | 93×73.5 mm |
| Surface : | Antiglare |
| Brightness : | 1000 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 6S2P WLED |
| Signal Interface : | TTL (1 ch, 8-bit) + SPI , 60 pins |
| Input Voltage : | 3.3V (Typ.) |
PVI PD040QX2 Mechanical Features
| Panel Size : | 4.0 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0775×0.2535 mm (H×V) |
| Pixel Pitch : | 0.2535×0.2535 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 81.12×60.84 mm (H×V) |
| Bezel Area : | 84.32×64.04 mm (H×V) |
| Outline Dimension : | 93×73.5 mm (H×V) |
| Outline Depth : | 3.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| EK014BS012 | PDI | 1.44" | 128×96 |
| EK014BS011 | PDI | 1.44" | 128×96 |
| EG020BS012 | PDI | 2.0" | 200×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

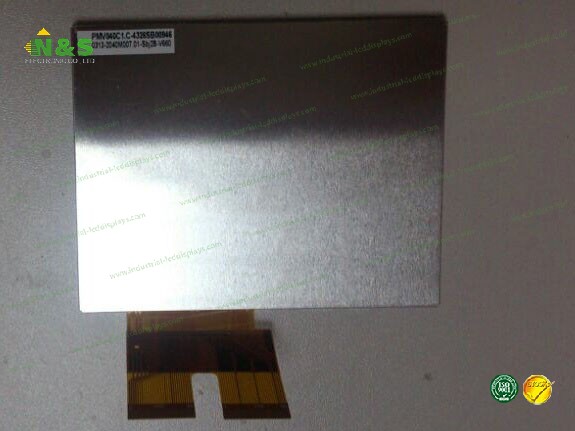

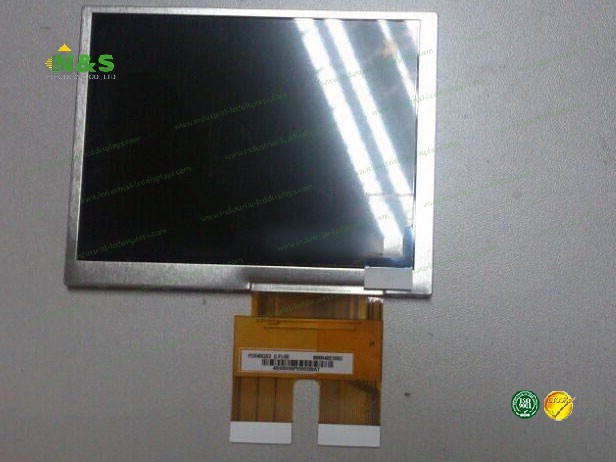

PD040QX2 Picture
