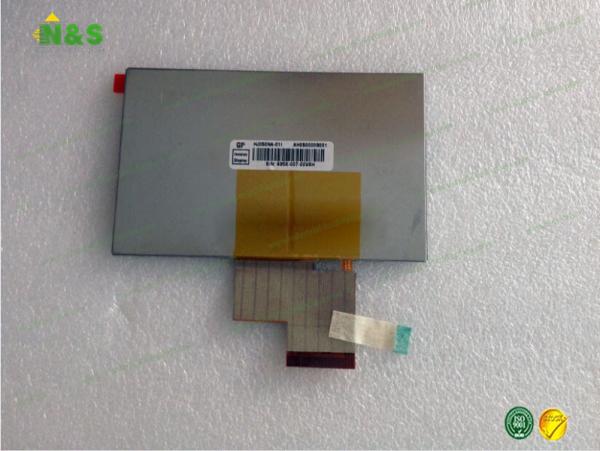

INNOLUX HJ050NA-01I 5.0 inch Active Area 108×64.8 mm Contrast Ratio 500:1 (Typ.) Lamp Type WLED Without Driver
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
Below are our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| AT070TN90 |
Innolux |
7.0" |
800×480 |
| PH030NA-04A |
Innolux |
3.0" |
240×400 |
| EE090NA-01C |
Innolux |
9.0" |
1280×800 |
| EE080NA-06A |
Innolux |
8.0" |
800×600 |
| AT080TN60 |
Innolux |
8.0" |
800×480 |
| EE070NA-01L |
Innolux |
7.0" |
1024×600 |
| EE070NA-01D |
Innolux |
7.0" |
1024×600 |
| AT070TN90 V.1 |
Innolux |
7.0" |
800×480 |
| AT070TN00 V.1 |
Innolux |
7.0" |
480×234 |
| AT050TN30 |
Innolux |
5.0" |
480×272 |
| LW700AT6005 |
Innolux |
7.0" |
800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
HJ050NA-01I Basic Information
| Panel Model |
HJ050NA-01I |
| Panel Brand |
CHIMEI INNOLUX |
| Descrition |
a-Si TFT-LCD ,5.0 inch, 800×480 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
HJ050NA-01I Mechanical Features
| Dot Resolution |
800(RGB)×480 (WVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
188 PPI |
| Aspect Ratio |
15:9 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.045×0.135 mm (H×V) |
| Pixel Pitch |
0.135×0.135 mm (H×V) |
| Weight |
59g (Typ.) |
| Surface |
Antiglare |
| Active Area |
108×64.8 mm (H×V) |
| Outline Dimension |
120.7×76.3 mm (H×V) |
| Outline Depth |
3.1±0.2 mm |
| Landscape or Portrait |
Portrait type |
| Touch Panel |
Without |
HJ050NA-01I Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K/16.7M (6-bit / 8-bit) |
| Response Time |
10/15 (Typ.)(Tr/Td) |
| Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.310; Wy:0.330 |
| White Variation |
1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable |
N |
