LQ050A3AD01 SHARP a-Si TFT-LCD ,5.0 inch, 320×234 for Industrial Application
LQ050A3AD01 Basic Information
| Panel Model | LQ050A3AD01 |
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,5.0 inch, 320×234 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 65 °C |
| Storage Temperature | -25 ~ 70 °C |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
LQ050A3AD01 Mechanical Features
| Dot Resolution | 320(RGB)×234 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 79 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1065×0.3195 mm (H×V) |
| Pixel Pitch | 0.3195×0.3195 mm (H×V) |
| Weight | 215±10g |
| Active Area | 102.24×74.76 mm (H×V) |
| Bezel Area | 107.5×79.9 mm (H×V) |
| Outline Dimension | 127.5×90.3 mm (H×V) |
| Outline Depth | 17.3/20.0 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
LQ050A3AD01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 100 : 1 (Min.) (Transmissive) |
| Display Color | Full color () |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM057QB1T04 | SHARP | 5.7" | 320×240 |
| LM641836R | SHARP | 9.4" | 640×480 |
| LM64194F | SHARP | 7.4" | 640×480 |
| LM64183P | SHARP | 9.4" | 640×480 |
| LM64P858 | SHARP | 9.4" | 640×480 |
| LM64P12 | SHARP | 8.0" | 640×480 |
| LM64P11 | SHARP | 6.0" | 640×480 |
| LM64P10 | SHARP | 7.2" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information

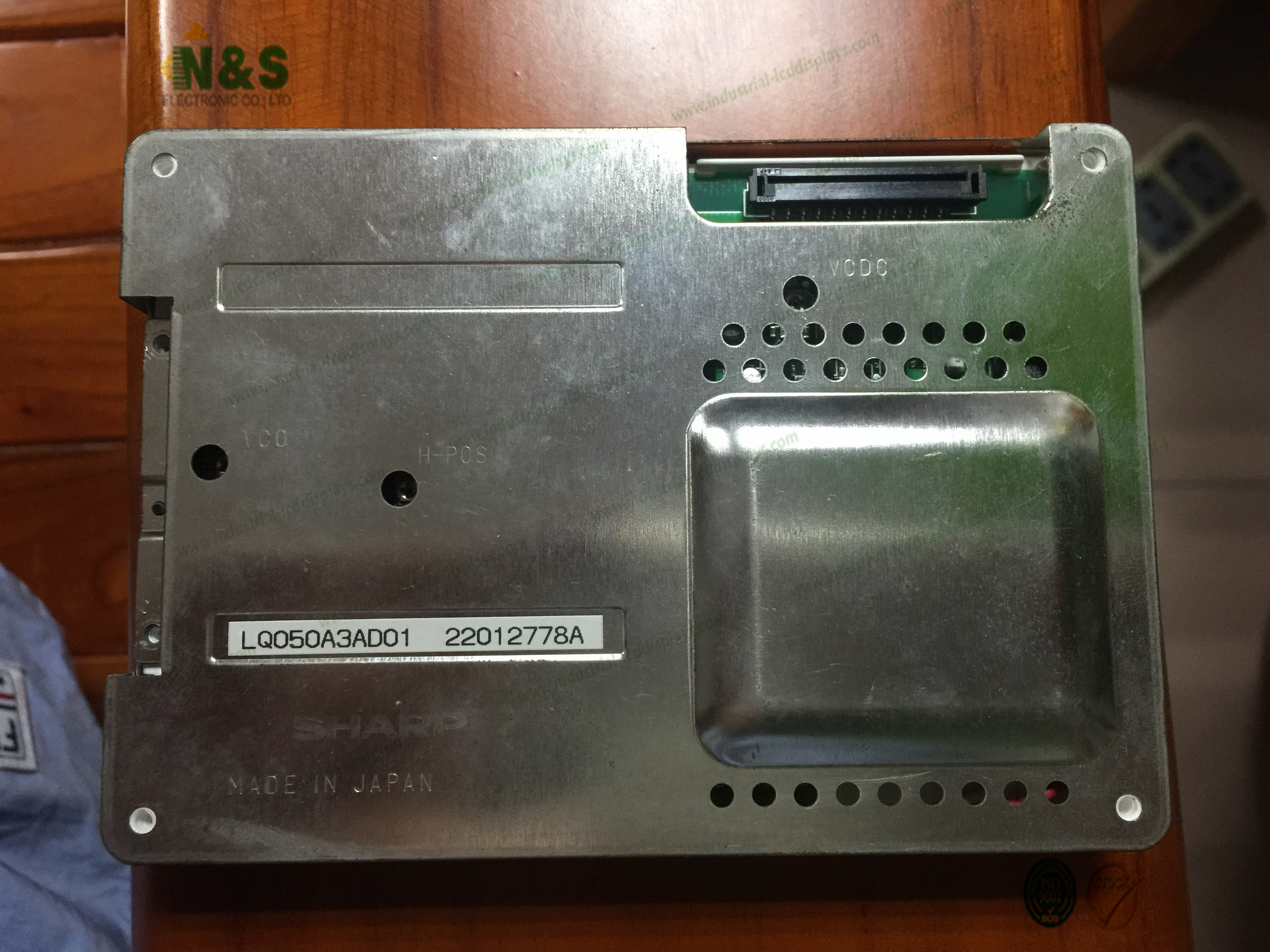

LQ050A3AD01 pictures
